Connections
|
3G/HD/SD-SDI Input : BNC 75Ω 4ea (with Scaler) HDMI Input : 2ea (with Scaler) 3G/HD/SD-SDI Output : BNC 75Ω 6ea (AUX1/AUX2/PGMx2) HDMI Output : 2ea (PGM/MULTIVIEW) USB2.0 : 1ea External Analog Audio Input : XLR 2ea External Analog Audio Output : XLR 2ea Audio Output : Stereo Jack 1ea RJ 45 : 1ea |
|
Video Format Support |
480i59/576i50 1080p30/1080p29/1080p25/1080p24/1080p23 1080i60/1080i59/1080i50/720p60/720p59/720p50 1080p60/1080p59/1080p50 |
|
Video Switcher |
Mix & Effect : 1ea PIP : 1ea LOGO : 1ea KEY : 1ea (LUMA/CHROMA) DSK : 1ea (FILL/KEY) Pattern Generator : 1ea (Color Bar) Multiview : 8view 1ea Audio Mixer : 8 stereo input, XLR, mixer 1ea |
|
Management |
VS8 console powered by connecting it with LAN cable to rackmount video switcher. No other power connection is required. |
|
Physical |

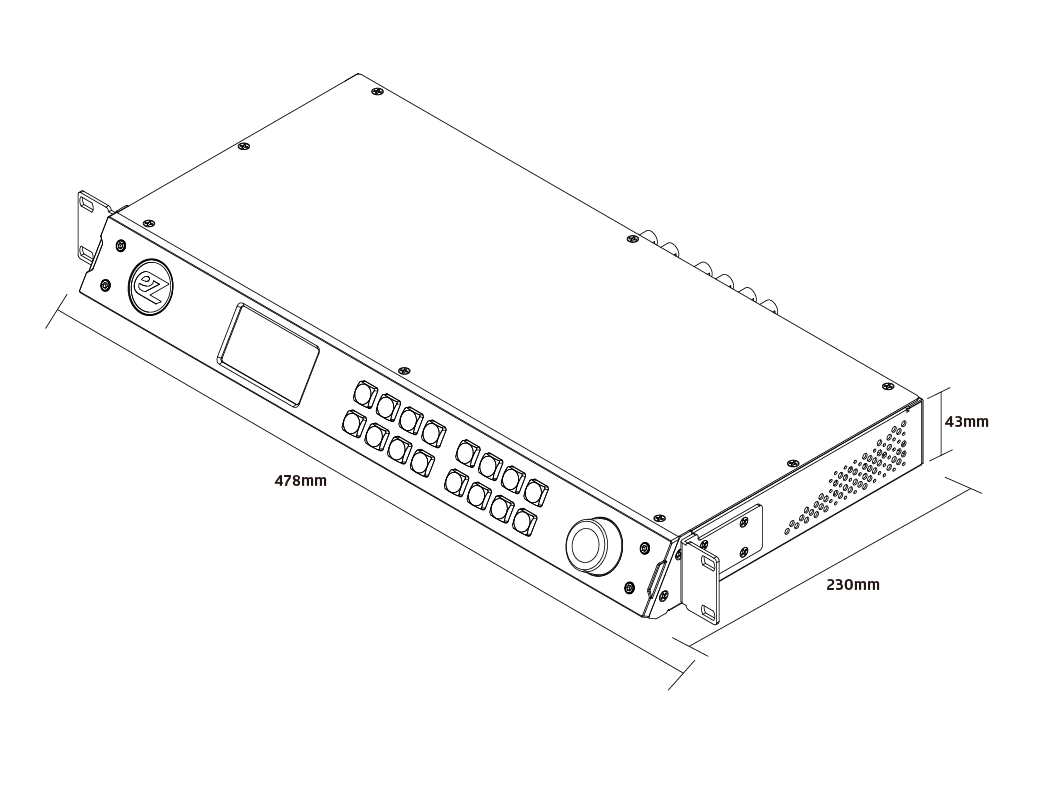

Dimension : 478(H)X43(W)X230(D) (mm, Excluding Connector) Weight : 3.0kg (6.61 lbs) |
|
Environmental |
Operating Temperature : 0 ~ 45℃ |
|
Power Requirement |
Power Input : 100 ~ 240 VAC @50/60Hz Power Consumption : 40W (max) |
