| Type | HD Encoder + 8VSB modulator |

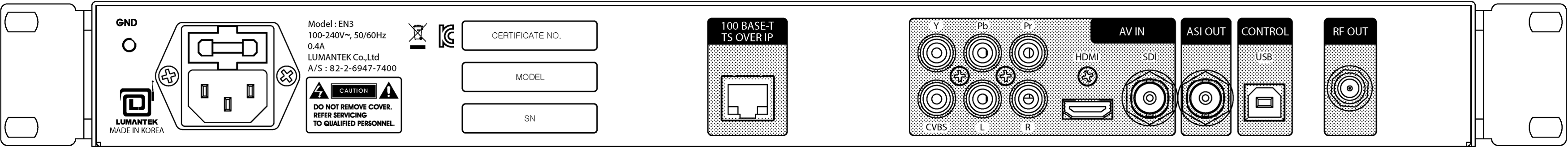

| Inputs | SD/HD-SDI, BNC 75Ohm 1ea HDMI 1.4a 1ea (HDCP not supported) Component, YCbCr, 170MHz 12bit ADC, RCA 3ea Composite, CVBS, 3D Comb Filter, RCA 1ea Analog Stereo Audio (Left/Right), RCA 2ea |
| Video Resolutions | 1920 x 1080 @60p, 59.94p, 50p Automatic Convert to Interlaced Format 1920 x 1080 @60i, 59.94i, 50i 1280 x 720 @60p, 59.94p, 50p 720 x 480 @59.94i (NTSC) 720 x 575 @50i (PAL) Resolution detect and automatic/manual change support |
| TS Mux & System | System Delay : 150ms, 200ms, 350ms, 650ms TS Bit-rate : 4.5~25Mbps Editable TS ID, PMT/PCR/ VIdeo/ Audio PID |
| Video Encoder |
MPEG2, H.264 |
| Audio Encoder | MP1L2, Dolby AC3, AAC-LC HE-AACv2 (stereo) Bit-rate : 192-384 Kbps (HE-AACv2:32-96Kbps) Sample Rate : 48KHz Audio Delay : 0 - 400ms Volume Control : 100 - 500% |
| PSIP Generator | MGT, TVCT Generation Enable/Disable Short name, major and minor channel number setting |
| ASI Output | Connector : BNC 75Ohm, 1ea Packet Size : 188Bytes TS Bit Rate : 19.392Mbps |
| RF Output | Modulation : ATSC (8VSB) Connector : F-Type 75Ohm 1ea Output Level : +2~-18dBm (0.5dB step) Center Frequency Range : 40~999MHz MER : >36dB Spurious : 60dBc (Relative to Output level) Phase Noise : VHF 110dBc@20kHZ, UHF 95dBc @20kHz |
| IP Output (*option) | Ethernet : 10/100Bast-T, half/Full Duplex Maximum Transmission Unit : 1464-1472 MTU Streaming Protocol : MPEG2-TS/UDP Transport Protocol : UDP, Unicast or multicast IGMPv1, IGMPv2 Support |
| Management | Front Panel : 4-line text LCD, 6 buttons, Status LED(RGB) Rear USB Port : GUI, Firmware update |
| Physical | Dimension : 44(H) x 483(W) x 240(D) (mm, excluding connectors) Operation Temperature : 0 - 45℃ Weight : 2 kg Power Consumption : 25W (Max.) |
