| Data Input | |
|
SDI Video Input |
SD/HD/3G-SDI (BNC 75Ω) x1 |
| HDMI Video Input | SD/HD/3G (HDMI Type A) x1 |
| Reference Input |
B.B , TRI (BNC 75Ω) x1 |
|
Audio Input |
D-SUB 9PIN (Female) x1 |
| Video Formats | 720x480i@59.94/60 720x576i@50 1280x720p@50/59.94/60 1920x1080i@50/59.94/60 1920x1080p@23.98/24/25/29.97/30 1920x1080p@50/59.94/60 |
| Data Output | |
| SDI VIdeo Output | SD/HD/3G-SDI (BNC 75Ω) x1 |
| HDMI Video Output | SD/HD/3G (HDMI Type A) x1 |
| Audio Output | D-SUB 9PIN (Female) x1 |
| 720x480i@59.94 (DIP SW : 1111) 720x576i@50 (DIP SW : 0111) 1280x720p@50 (DIP SW : 1011) 1280x720p@59.94 (DIP SW : 0011) 1280x720p@60 (DIP SW : 1101) 1920x1080i@50 (DIP SW : 0101) 1920x1080i@59.94 (DIP SW : 1001) 1920x1080i@60 (DIP SW : 0001) 1920x1080p@23.98 (DIP SW : 1110) 1920x1080p@24 (DIP SW : 0110) 1920x1080p@25 (DIP SW : 1010) 1920x1080p@29.97 (DIP SW : 0010) 1920x1080p@30 (DIP SW : 1100) 1920x1080p@50 (DIP SW : 0100) 1920x1080p@59.94 (DIP SW : 1000) 1920x1080p@60 (DIP SW : 0000) |
|
| Connections | |
| Power |
DC Power Input (DC Jack) x1 |
| Update | Debus (Micro-USB) x 1 |
| DIP Switch | (10 Pole) x 1 Video Output Resolution, Video Output Ratio, Video Input (SDI or HDMI), Audio (INT or EXT), Sync Mode : Free Running, Input lock, Genlock (B.B or TRI-Level), Audio Gain (0 or -10dB) |
| Rotary Switch | (10 step) x 1 |
| Audio Delay Control | (50ms Step) |
| Display | |
| Link (Green x 1) | HDMI or SDI Input video Detect |
| Ref (Green x 1) | REF Input Signal Detect |
| Left (Green x 1, Red x 1) | Input Audio Level Meter (Left) |
| Right (Green x 1, RED x 1) | Input Audio Level Meter (Right) |
| Electrical | |
| Power Input |
DC +11V to +13V |
| Power consumption |
8W (max.) |
| Operation Temperature |
0~45℃ |
| Physical | |
|

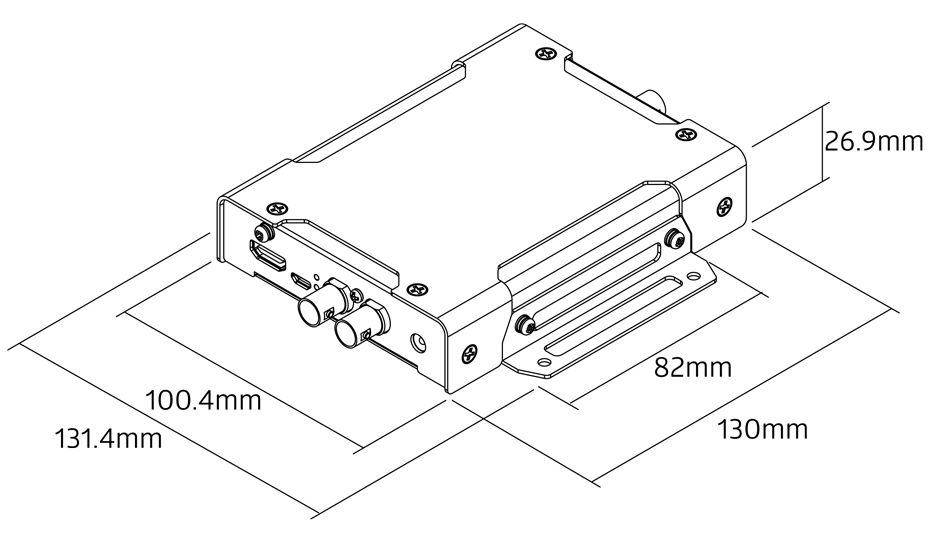

Dimension |
130x100.4x26.9 mm (include connector) |
| Weight | 0.4kg (0.88 lbs) |
| 아답터 숫형커넥터 | |
| 외경 | 5.5 파이 |
| 내경 | 2.1 파이 |
