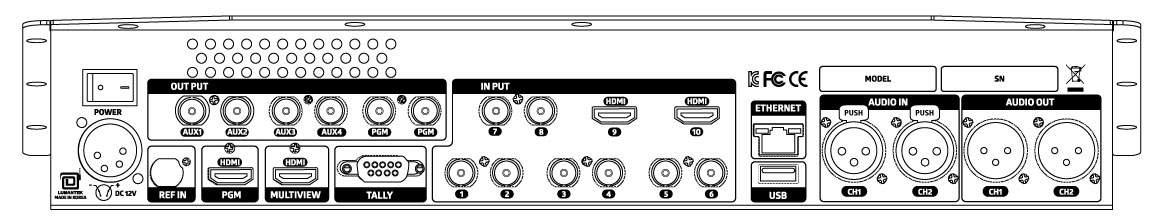

Connections |
3G/HD/SD-SDI Input : BNC 75Ω 8ea (with Scaler) HDMI Input : 2ea (with Scaler) 3G/HD/SD-SDI Output : BNC 75Ω 6ea (AUX1/AUX2/AUX3/AUX4/PGMx2) HDMI Output : 2ea (PGM/MULTIVIEW) Remote : 1ea Reference Input : 1ea USB2.0 : 1ea External Analog Audio Input : XLR 2ea External Analog Audio Output : XLR 2ea DC 12V : 1ea |
Video Format Support |
480i59/576i50 (Input only for SD resolution) 1080p30/1080p29/1080p25/1080p24/1080p23 1080i60/1080i59/1080i50/720p60/720p59/720p50 1080p60/1080p59/1080p50 |
Video Switcher |
Mix & Effect : 1ea PIP : 2ea KEY : 1ea (LUMA/CHROMA) Downstream Keyer : 1ea (FILL/KEY) Pattern Generator : 2ea (Color Bar/Color BG) Media : 2ea Multiview : 8view/13view/16view 1ea Audio Mixer : 10 stereo input mixer 1ea |
Management |
TFT-LCD (4.98inch, Capactive Touch Screen) |
Physical |

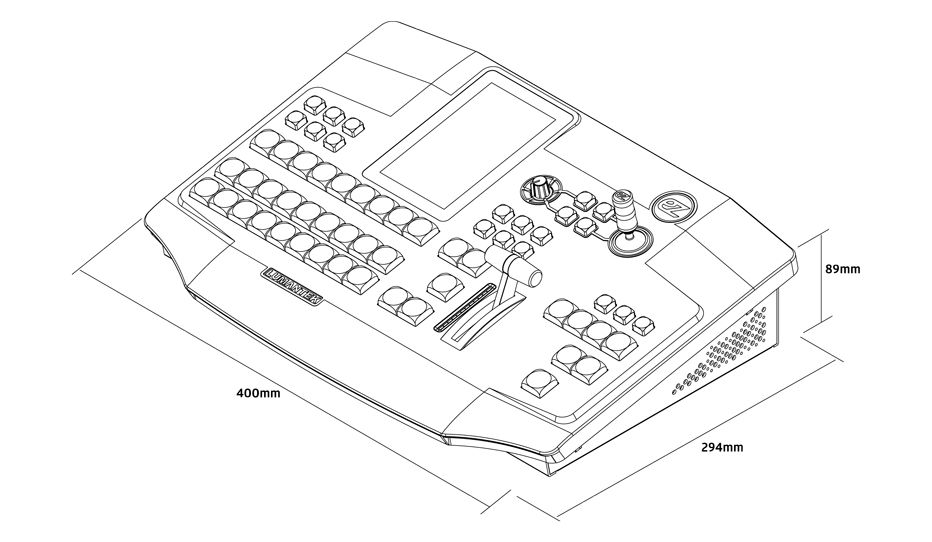

Dimension : 89(H)X400(W)X294(D) (mm, Excluding Connector)
Weight : 3.7kg (8.15lbs) |
Environmental |
Operating Temperature : 0 ~ 45 ℃ |
Power Requirement |
Power Input : DC 12V Power Consumption : 40W (max) |
